Lithium-Ion Battery
As the global energy system gradually shifts from fossil fuels to renewable energy and electric mobility, efficient energy storage technologies have become increasingly important. Among the various battery technologies available today, Lithium-Ion (Li-ion) batteries are the most widely used and technologically advanced.
Why lithium?
Lithium is:
- Extremely lightweight
- Highly reactive (which means more energy)
- Able to store a large amount of energy in a small space
That’s why lithium battery working efficiency is much higher compared to traditional lead-acid or nickel-based batteries.

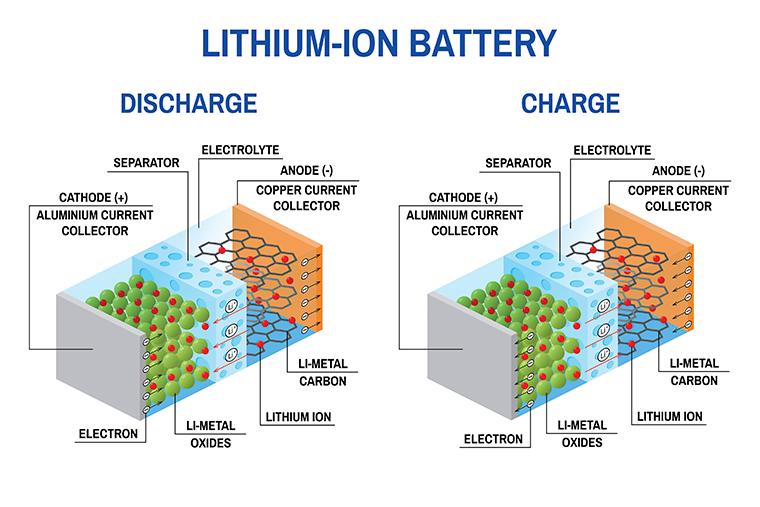

Core Components of a Li-ion Cell
To understand how a lithium-ion battery works, we must first look at its four primary internal components:
- Cathode (Positive Electrode): This is the source of the lithium ions. It is typically made from a chemical compound of lithium and other metals, such as Lithium Cobalt Oxide () or Lithium Iron Phosphate ().
- Anode (Negative Electrode): This component stores the lithium ions when the battery is charged. It is usually made of Graphite, which is a highly porous crystalline form of carbon.
- Electrolyte: A liquid chemical solution (lithium salt (most commonly- ) that fills the space inside the battery. Its primary function is to act as a transport medium. It allows positively charged lithium ions to flow freely between the cathode and anode, but it strictly blocks the flow of electrons.
- Separator: A micro-porous, thin plastic film placed directly between the anode and the cathode. It acts as a physical barrier to prevent the two electrodes from touching (which would cause a dangerous short circuit) while still allowing the microscopic lithium ions to pass through its tiny pores.
Working Mechanism:
Lithium-ion batteries are often called “rocking chair” batteries because the lithium ions constantly swing back and forth between the cathode and the anode during the charging and discharging cycles. This reversible process of ions inserting themselves into the electrode materials is scientifically known as intercalation.
The Charging Process (Storing Energy)
- When you plug the battery into a charger, an external electrical current is forced into the cell.
- This energy physically pulls the positively charged Lithium ions () out of the Cathode.
- The ions swim through the liquid electrolyte, pass through the separator, and embed themselves into the spaces within the graphite Anode.
- At the same time, the electrons are blocked by the electrolyte and must travel through the external charging wire to reach the Anode. Once the Anode is completely filled with lithium ions and electrons, the battery is 100% charged.
The Discharging Process (Releasing Energy)
- When the battery is disconnected from the charger and turned on to power a device (like a mobile phone or an electric vehicle), the process reverses.
- The lithium ions naturally want to return to their stable home in the Cathode. They leave the graphite Anode and swim back through the electrolyte.
- The electrons, however, cannot travel through the electrolyte. To reunite with the lithium ions at the Cathode, the electrons are forced to travel through the external circuit of your device.
- This continuous flow of electrons through the external wire is the electric current that powers the device.
Here’s a simple table to make the process easier to visualize.
Process | Lithium-Ion Movement | Electron Flow | Result |
Discharging | Anode → Cathode | Through device | Device powered |
Charging | Cathode → Anode | From charger | Energy stored |
Why Lithium-Ion Batteries Are Rechargeable
One major reason lithium cell batteries dominate today’s market is their rechargeability.
Unlike disposable batteries:
- No material is permanently consumed
- Lithium ions only move; they don’t get destroyed
- Internal structure remains stable for many cycles
This is a key reason lithium battery working is efficient and cost-effective over time.
Different Types of Lithium-Ion Batteries
Battery Type | Chemical Composition | Key Characteristics | Common Applications |
Lithium Cobalt Oxide (LCO) | LiCoO₂ | High energy density, lightweight, suitable for compact devices | Mobile phones, laptops, cameras |
Lithium Iron Phosphate (LFP) | LiFePO₄ | High safety, long cycle life, good thermal stability | Solar energy storage systems, electric vehicles, backup power |
Lithium Nickel Manganese Cobalt (NMC) | LiNiMnCoO₂ | Balanced performance, high energy density and efficiency | Electric vehicles, power tools, energy storage systems |
Lithium Titanate (LTO) | Li₄Ti₅O₁₂ (Titanate anode) | Very fast charging, long lifespan, high safety | Fast-charging electric vehicles, grid storage, industrial applications |
Advantages:
- High Energy Density: Lithium-ion batteries provide a high amount of energy in a lightweight package.
- Rechargeable: They can be recharged multiple times.
- Long Battery Life: They have a relatively long lifespan compared to other types of batteries.
- Low self-discharge rate: When a Li-ion battery is left unused on a shelf, it loses its stored charge at a very slow rate (around 1.5% to 2% per month).
- Zero Memory Effect: Older batteries required users to completely drain the power to 0% before recharging to avoid permanently shrinking the battery’s capacity. Li-ion batteries do not suffer from this; they can be plugged in and recharged at any percentage without damaging their long-term capacity.
- Versatility: They are used in a wide range of applications, from small gadgets to electric vehicles.
Applications of Lithium-Ion Batteries
- Consumer Electronics: Used in smartphones, laptops, tablets, cameras, and wearable devices.
- Electric Vehicles (EVs): Power source for electric cars, buses, scooters, and bicycles.
- Renewable Energy Storage: Stores electricity generated from solar and wind power systems.
- Portable Power Tools: Used in cordless drills, saws, and other battery-powered tools.
- Grid Energy Storage: Helps store electricity for power grids and backup power systems.
Challenges and Safety Concerns
Despite their advantages, lithium-ion batteries face certain technical and strategic challenges.
Applications of Lithium-Ion Batteries
- The electrolyte used in lithium-ion batteries is highly flammable.
- Damage, overcharging, or exposure to high temperatures can trigger a chain reaction called thermal runaway.
- This may lead to overheating, fire, or explosion.
Dependence on Critical Minerals
- Lithium-ion batteries require critical minerals such as lithium, cobalt, and nickel.
- These minerals are unevenly distributed across the world, creating supply risks.
- A large share of lithium reserves is located in the “Lithium Triangle” of Argentina, Bolivia, and Chile.
India’s Strategic Position on Lithium
- For countries aiming to expand electric mobility and renewable energy storage, securing lithium resources has become strategically important.
- India has traditionally depended heavily on imports for lithium-ion battery cells and critical minerals. However, recent discoveries of large lithium ore reserve in the Reasi district of Jammu and Kashmir have opened new opportunities for developing domestic resources.
- The development of these reserves could support energy security, domestic battery manufacturing, and the transition toward cleaner energy systems.
