Anatomy of a Rocket

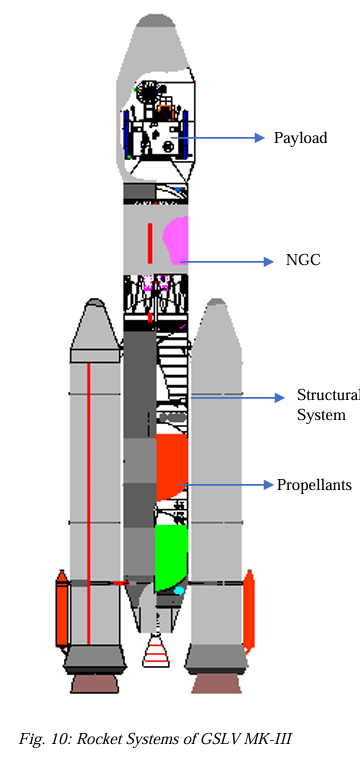

To successfully launch a rocket into space, multiple subsystems must work in tandem to overcome gravity, stabilize flight, and deliver the payload. These systems are broadly classified into four major components: the structural system, the propellant system, the navigation-guidance-control system, and the payload system.
1. Structural System
The structural system forms the backbone of the rocket. It provides the physical framework that holds all the other components together and endures the immense stress experienced during launch and flight. This system consists of the cylindrical body, motor cases, inter-structures, nose cones, nozzles, propellant tanks, heat shields, and engine mounting structures. Each part is meticulously fabricated and machined to high precision to ensure that the rocket maintains structural integrity under high thrust, vibration, and thermal pressure conditions.
2. Propellant System
Propellants are the primary source of thrust in a rocket and occupy the largest volume within the vehicle. They provide the energy required to overcome gravitational pull and push the rocket into space. Solid propellants are pre-cast into segments and stored well before the launch, while liquid or earth-storable propellants and cryogenic propellants are loaded shortly before liftoff. Cryogenic propellants, which are extremely cold by nature, are kept under constant cooling using chillers until launch to maintain their state and effectiveness. The efficient management and combustion of these propellants are crucial to a successful launch.
3. Navigation, Guidance and Control (NGC) System
The navigation, guidance, and control system ensures the rocket stays on its intended trajectory and reaches its desired orbit. It continuously stabilizes the rocket’s attitude (angular orientation), monitors its flight path, and makes real-time adjustments during ascent. Sensors within the system detect the instantaneous position and velocity of the vehicle and help recalibrate the remaining path. Advanced computation, high-speed data processing, and inertial navigation are employed to steer the vehicle with accuracy, making this subsystem critical for mission success and orbital precision.
4. Payload System
The payload system refers to the object or instruments that the rocket is designed to deliver into space. The nature of the payload depends on the mission objectives—it may include communication satellites, Earth observation instruments, navigation systems, space telescopes, scientific probes, or even human passengers in manned missions. Payloads are often customized based on functionality and may carry optical sensors, transmitters, receivers, and data-processing equipment. The rocket’s design ensures that the payload is safely housed during launch and accurately deployed into its designated orbit.
